Water Evaporative Cooling Pad Work Principle

Evaporative cooling utilizes the basics of air and water to produce a very significant temperature drop. Evaporative cooling can also create a desired amount of humidification to increase efficiency of machinery or comfort in buildings. Because of its effectiveness in cooling and humidification, evaporative cooling is the primary choice in such industries as: gas turbine, greenhouse, livestock farming, automobile painting, residential cooling, and commercial building climate control.
An evaporative cooling system consists of pads which are designed to absorb and hold water and give maximum surface area for air and water contact. As air passes through the pads the natural evaporation of water creates cooled and humidified air.

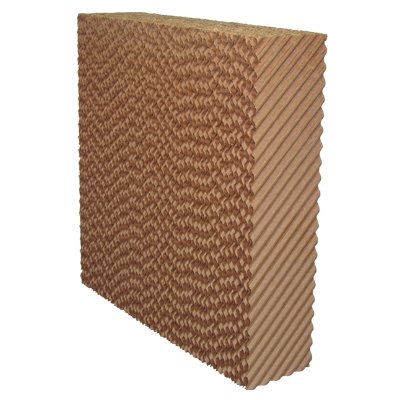

Evaporative Cooling Pad Products Features

1) Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.

2) Large evaporation area, cooling efficiency as high as 80%.

3) The product absorbs water naturally, with fast speed of pervasion and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70mm/5minutes, as 200mm/1.5 hours, having reached international standard.

4) The product does not contain phenol which is irritant to the skin and the like chemical products. It is safe, energy saving, environmental protective, economic and durable.

5) Galvanized sheet and aluminum panel optional.

6) Size and color of Evaporative Cooling Pad can be made by buyers request,Brown, Green, Green/Brown color, Black coated-single side(washable),Green coated-single side (washable),Yellow coated-single side (washable) ,Variety color: Brown, Green, Green/Brown color, Black coated-single side(washable),Green coated-single side (washable),Yellow coated-single side (washable)

7) Evaporative cooling pad, Strict production as per standard, width of 600mm cooling pad involves 85 sheets; raw material adopt imported kraft paper(100GSM, thickeness:0.18-0.20mm, tension resistance at 70N, absorbability height as 45mm/10min , moisture at 5-8%, humidity at 18N)

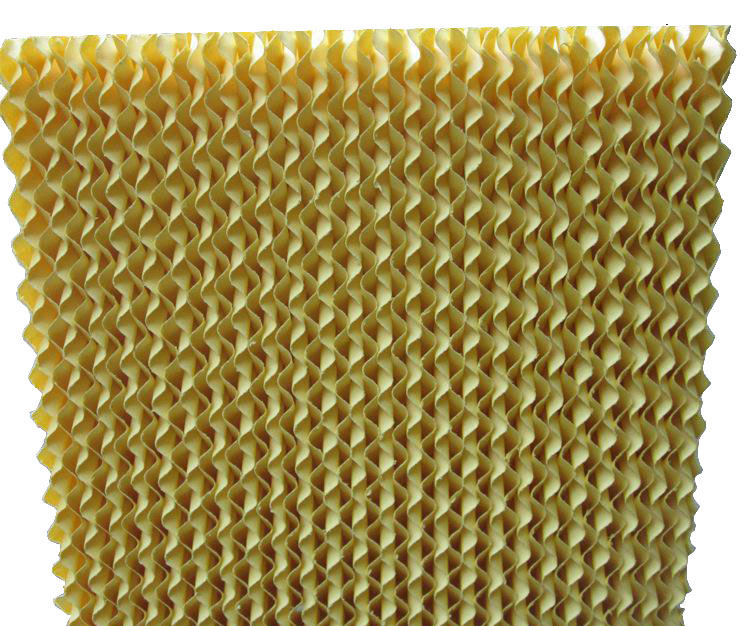

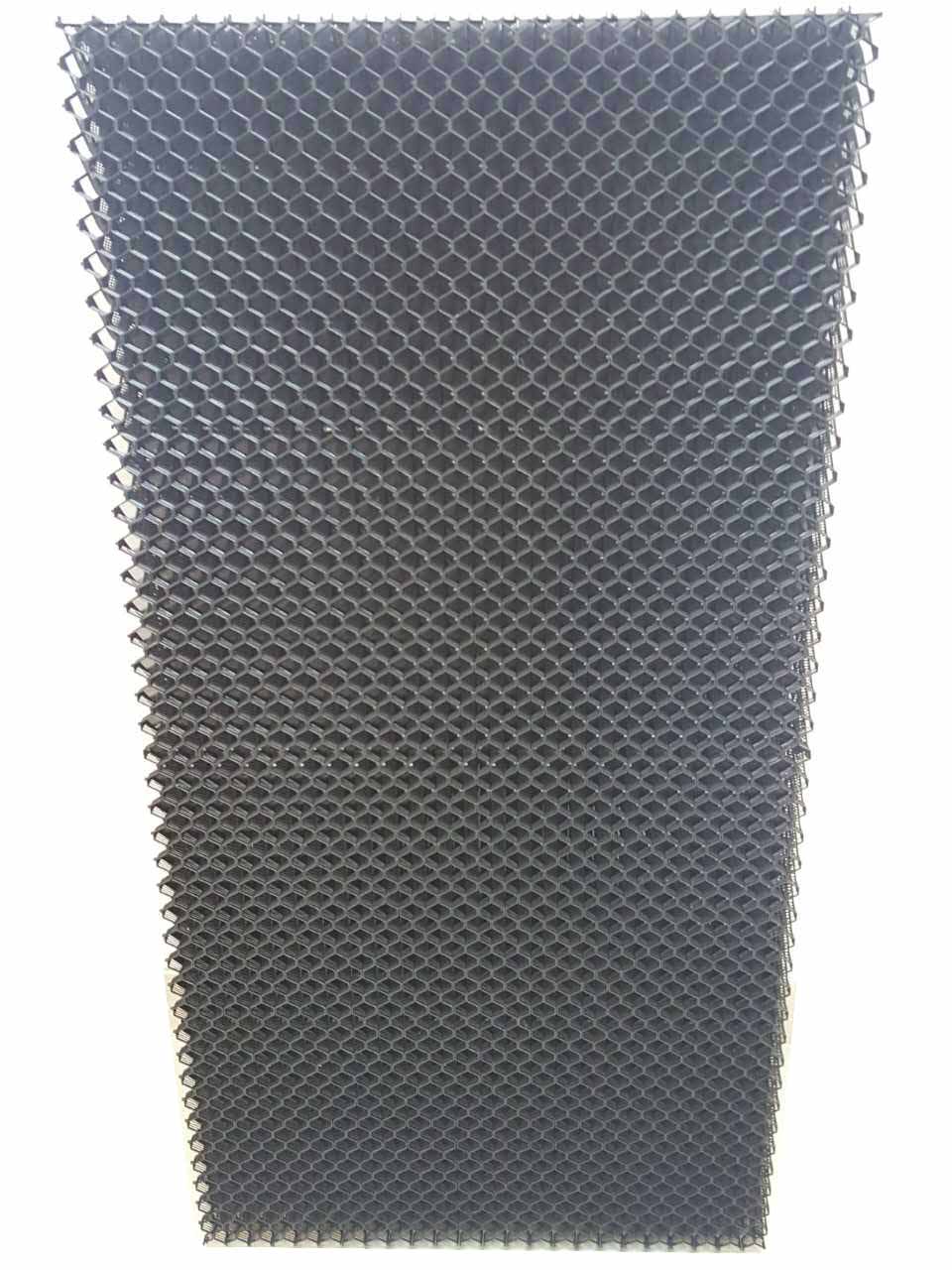

Different Colors of  Evaporative Paper Cooling Pads

Feature of Water Cooling Pad

Detailed Parameter of Evaporative Paper Cooling Pads

We can supply special thickness: 30mm 40mm 50mm 60mm 70mm 80mm 300mm 400mm 500mm and 600mm, we also can supply special height and width according to you.

Performance Curve of Evaporative Paper Cooling Pad

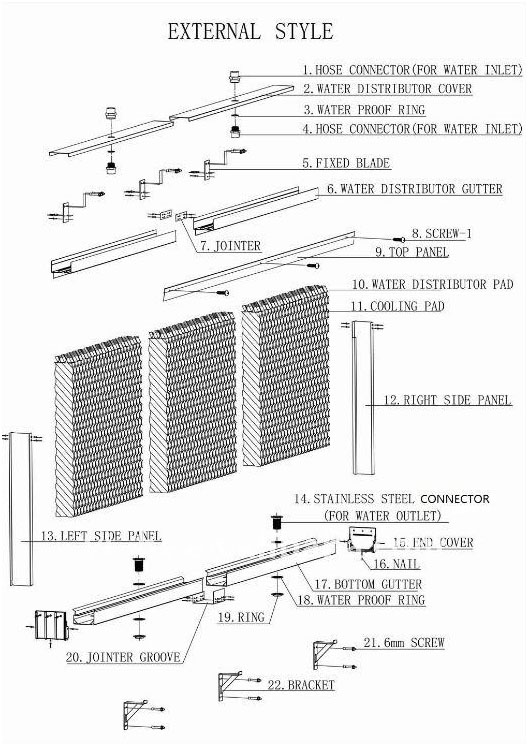

Galvanized sheet, aluminum alloy or fiberglass for outline frame

Package of Evaporative Cooling Pad

Certificates of Our Companies

Application of Evaporative Paper Cooling Pad

1. Poultry Industry Evaporative cooling systems are vital for optimizing the air quality inside tunnel ventilated poultry buildings during periods of hot weather.  By maintaining lower air temperatures heat-stress related problems are reduced.
2. Horticulture Industry A consistent air temperature is very important inside a greenhouse. There is a delicate balance that must be maintained for maximum production. Using a high quality evaporative cooling media within your evaporative system will assures that balance.
3. Dairy Industry Heat stress on dairy cows can result in a decrease in milk production. A recirculation type evaporative cooling system using high quality evaporative cooling media will minimize production loss during extreme outside temperature spikes.
4. Swine Industry Maintaining a consistent air temperature inside a swine facility is key to animal comfort and production. Installing an evaporative cooling system with pad is a proven way to provide a more consistent air temperature and quality...
5. Industrial Evaporative cooling is an energy efficient solution for the industry, where hot indoor climate leads to low productivity and unsatisfied working staff. this can increase the number of errors and accidents in your production lines.
6. Commercial evaporative cooling media can be ordered in customized sizes to fit in any air handling unit working with evaporative cooling technology, to improve the working environment of your business, not only for your customers but also for your staff.
7. Residential The media you use on your cooler will directly affect its performance, the consistent performance of cooler pad will enchance the performance of your coole

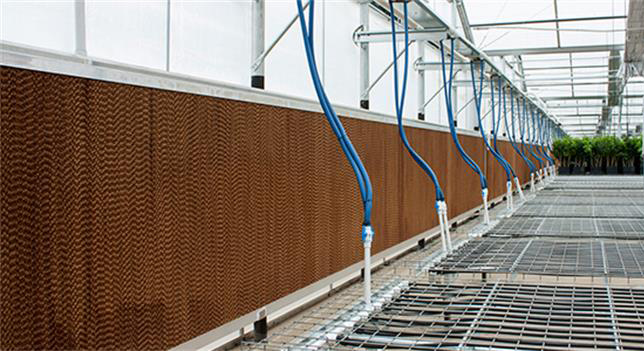

Projects of Evaporative Paper Cooling Pad

FAQ

1. Q : What are your main products ?

A : Our mainly produce desiccant rotor, dehumidifer, energy wheel heat recovery unit etc.

2 .Q: May I get free sample?

A:Normally, our samples for charger are not free. However, the sample fee will be refunded when customer place bulk orders for that item.

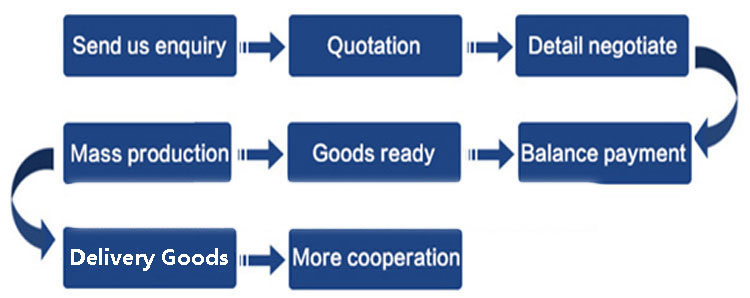

3 .How to got the order?

4. Q: Can you supply OEM or ODM service?

A:We can supply OEM/ODM service of any charger or cable, power bank absolutely!

5. Q: Which shipment available?

A:Normally, we ship goods by sea, air and express. Special requirement also acceptable.

By sea to your nearest sea port

By air to your nearest air port

By express(UPS,DHL.FEDEX,TNT...) to your door

6. Q : How to guarantee after sale ?

A : We supply 1 year products warranty. If the item is found to be defective in warranty,please contact us as soon sa possible, so that we can help to solve the problem at fastest rate : send back to our factory for repairing, or we send new one for you.
