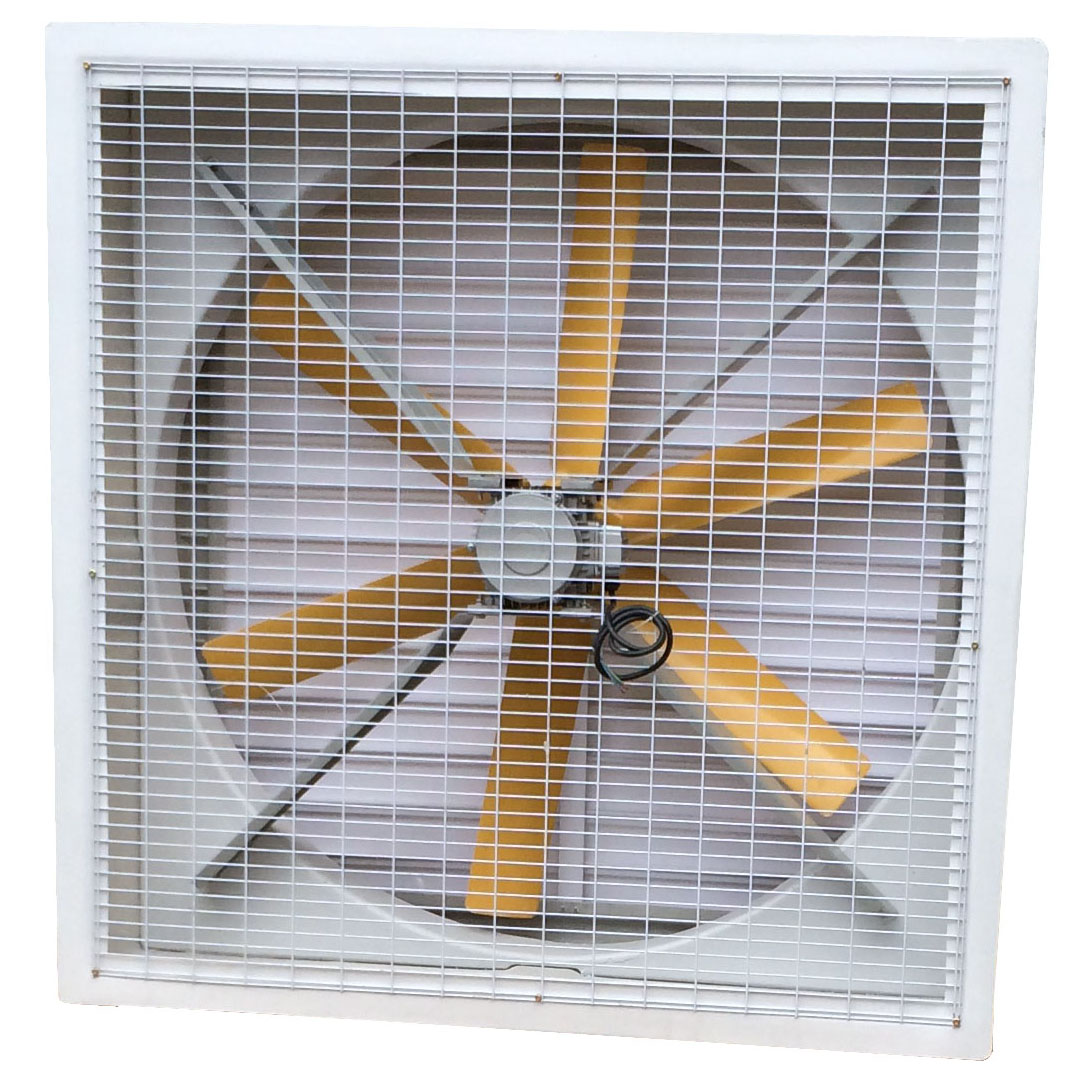

agriculture good price chicken shed high flow rate wall mount axial flow ventilation fan

Specification

1. 33years factory history

2. Guaranteed quality with CE

3. Fine performance

4. Larger wind output

5. Low power & low price

6. 10 years housing lifetime

Main Parameter of Axial Flow Ventilation Fan

Product No.	FW-WS51FH3F	FW-WS68FH6F	FW-WS80FH6F
Diameter of Fan	420mm	540mm	620mm
Rotation Speed	1400RPM	700RPM	700RPM
Air Volume	5000 m³/h	12000 m³/h	21500 m³/h
Noise	≤68dB	≤65dB	≤66dB
Motor	0.37KW 4pole	0.37KW 4pole	0.37KW 4pole
Voltage	220V/380V/415V	220V/380V/415V	220V/380V/415V
Product w/o Flange Size	510*510*270mm	680*680*320mm	800*800*320mm
Product  w/ Flange Size	550*550*270mm	760*760*320mm	860*860*320mm

Product No.	FW-WS100FH6F	FW-WS122FH6F	FW-WS138FH6F
Diameter of Fan	850mm	1050mm	1250mm
Rotation Speed	550RPM	550RPM	430RPM
Air Volume	25500 m³/h	33500 m³/h	42000 m³/h
Noise	≤70dB	≤68dB	≤68dB
Motor	0.55KW 10pole	0.75KW 12pole	1.1KW 12pole
Voltage	220V/380V/415V	220V/380V/415V	220V/380V/415V
Product w/o Flange Size	1000*1000*320mm	1220*1220*320mm	1380*1380*320mm
Product  w/ Flange Size	1060*1060*320mm	1260*1260*320mm	1460*1460*320mm

Advantage of Axial Flow Ventilation Fan

1.Huge airflow, low noise, high efficiency.Good looking, surface smoothness & gloss without rough edges.

2.Be introduced the advanced technology from Europe, suitable for various environment.

3.Fan Housing: strength fiberglass.

4.Shutters: good plastic

5.Fan Propeller: 6pcs blades of propeller made by mould pressing.

6.Motor: die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load     protection inside.

7.Bearing: imported auto bearing to ensure stable operation for the fan propeller and low noise.

8.Cable outlet: cable outlet is on the back of the fan, it makes the fan with more convenience for installation.

Main Parts of Axial Flow Ventilation Fan

Exhaust Fan Housing

corrosion resistant fiberglass housing impact resistant with U.V. protection for better durability, and life

extra liner FRP resin inside for easy cleaning, minimal dirt, disease build-up and maximum air flow flush, eliminates

any protrusions or obstructions in the inside area, self draining sloped housing

Exhaust Fan Motor

motor is 0.75KW

standard motors are totally enclosed, high efficiency

all motors are designed and rated for years of trouble free operation

each motor is individually tested for 100% quality control

heavy duty casting pulley and hub

Exhaust Fan Propeller

Exhaut Fan Motor Bracket

stamped 3mm iron plate bracket, all corners are polished

Exhust Fan Shutter

shutter with PVC extrusion frame

all corner are weld and have extra stainless steel corner

PVC louver with T bar

wire by pass

easy clip to remove shutter

guard; powder coat and cold zinc galvanise for better protection

Exhaust Fan and Cooling Pad Cool Schematic Diagram

Application of Axial Flow Ventilation Fan

This fiberglass exhaust fan are widely used in agriculture, industry and other busy or closed places for cooling, such as greenhouse (flower, vegetable and plant), poultry house(animal husbandry, livestock breeding, cow/chicken/sheep house),factory workshop(textile, chemical, medicine, tea, vegetable storage)restaurant and supermarket

CE certificate of Axial Flow Ventilation Fan

Our Markets

FAQ

1 .Q: May I get free sample?

A:Normally, our samples for charger are not free. However, the sample fee will be refunded when customer    place bulk orders for that item.

2 .Q:How to got the order?

3. Q: Can you supply OEM or ODM service?

A:We can supply OEM/ODM service of any charger or cable, power bank absolutely!

4. Q: Which shipment available?

A:Normally, we ship goods by sea, air and express. Special requirement also acceptable.

By sea to your nearest sea port

By air to your nearest air port

By express(UPS,DHL.FEDEX,TNT...) to your door

5. Q : How to guarantee after sale ?

A : We supply 1 year products warranty. If the item is found to be defective in warranty,please contact                       us as soon sa possible, so that we can help to solve the problem at fastest rate : send back to our                         factory for repairing, or we send new one for you.
